My name is Carlos, I'm a Computer Engineering student, VR enthusiast, and Amateur Photographer. I create SlimeVR full body trackers and take Macro and Nature photos.
You can check out some of what I do by exploring this page and taking a look at the sections of it using the navigation bar on the left.
Trackers
What are my trackers?
My trackers are based on the SlimeVR project, an open source IMU-based full body tracking solution that aims to make full body motion tracking easier to access. I design and make my own trackers for use in full body tracking supported games such as VRChat and Blade & Sorcery.
How SlimeVR works, its Benefits, and Disadvantages
There are several full body tracking solutions, which mainly fall into three categories: IMU-based, Base-Station tracked, and Camera based. IMU-based full body tracking solutions work by estimating the position of your body using inverse kinematics and some clever math. SlimeVR Trackers connect to your WiFi and pass their tracking data to a SlimeVR server hosted on a nearby phone or computer which then can pass that data to SteamVR or OSC.
Base-Station tracked trackers use external base stations set up at the corners of your room to get the exact position and rotation of your trackers in 3d space.
Camera based tracking solutions include methods such as Viso or Kinect. Viso builds a skeleton of your body based on the video from your phone, while kinect builds a skeleton with a combination of color video feed, ir video feed, and a depth video feed.
The following table will compare SlimeVR Tracking to Base Station Trackfing and Viso. You can hover over text with an asterisk (*) in the table to see more information.
SlimeVR Base Station* Viso*
Accuracy* Not exact, prone to drift Exact Relatively inaccurate, cannot handle fast movements
Occulsion* Not affected by occlusion Prone to occlusion in some cases Extremely prone to occlusion
Battery life* 12+ hours* 7 hours* Depends on phone's battery life
Platforms* PC and Standalone* PC only PC and Standalone*
It is worth noting that SlimeVR trackers typically only work on 2.4ghz networks, and only on networks with no captive portal. This means that SlimeVR DOES NOT WORK on the wifi of most colleges, universities, or other educational institutions. If you live in a college dorm room or any other place where WiFi will have a captive portal, you will have to either buy a personal router for VR, or host an access point from your computer using Windows's built in WiFi hotspot feature.
Tracker Specifications
  • IMU: BMI160
  • Battery: 18650 battery
  • BMS: TP4056
  • Wifi: Wemos D1 Mini

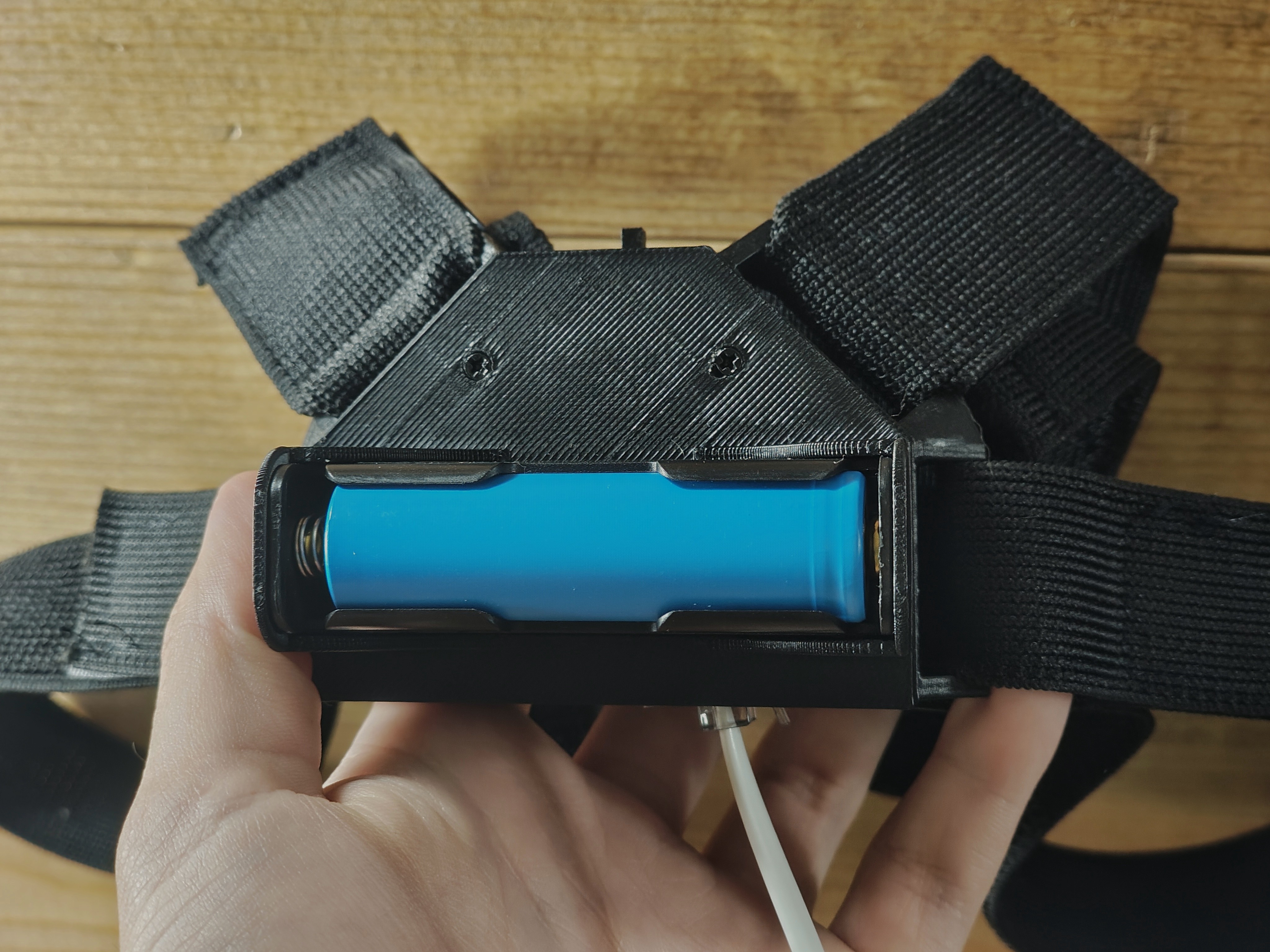

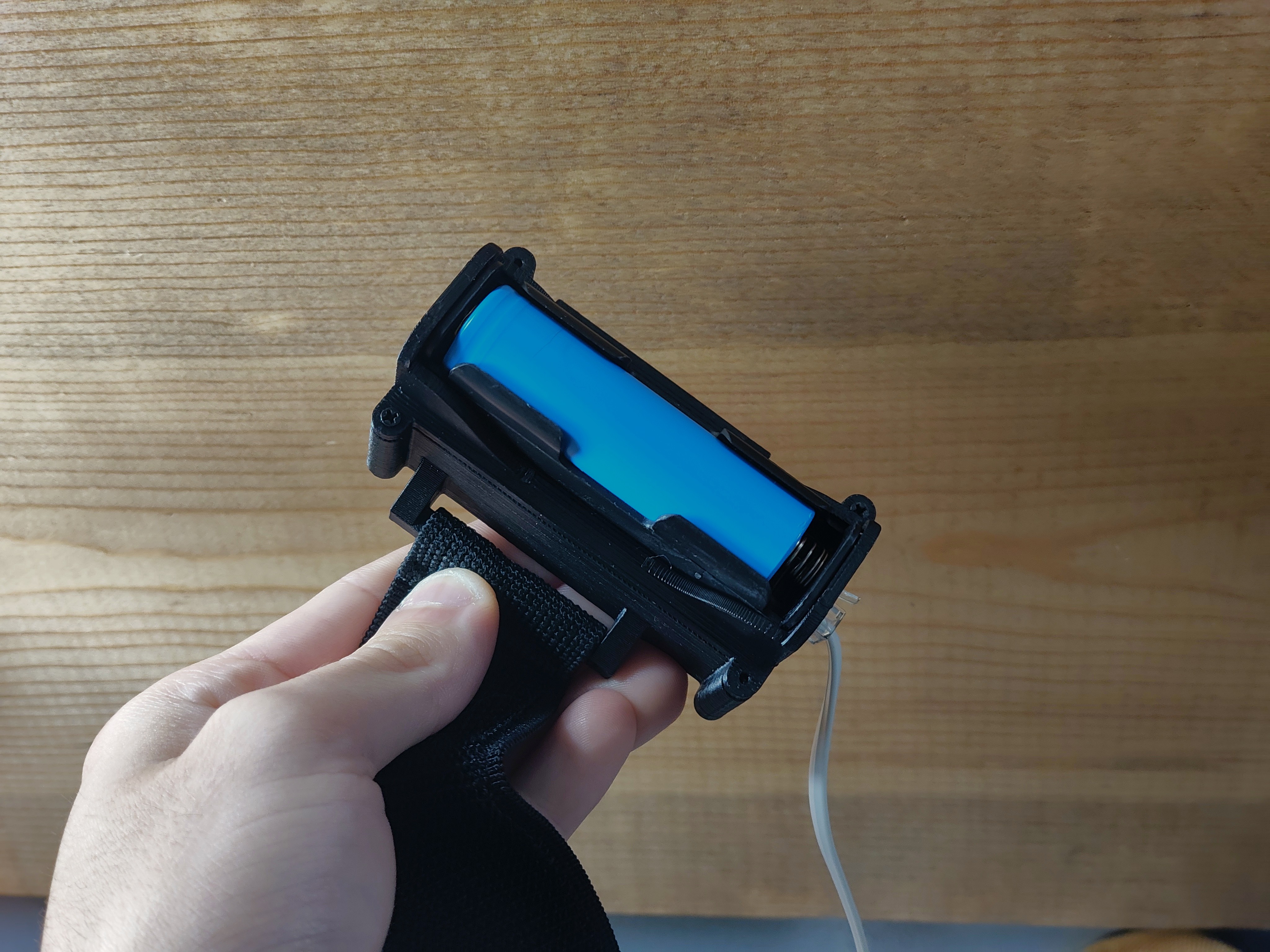

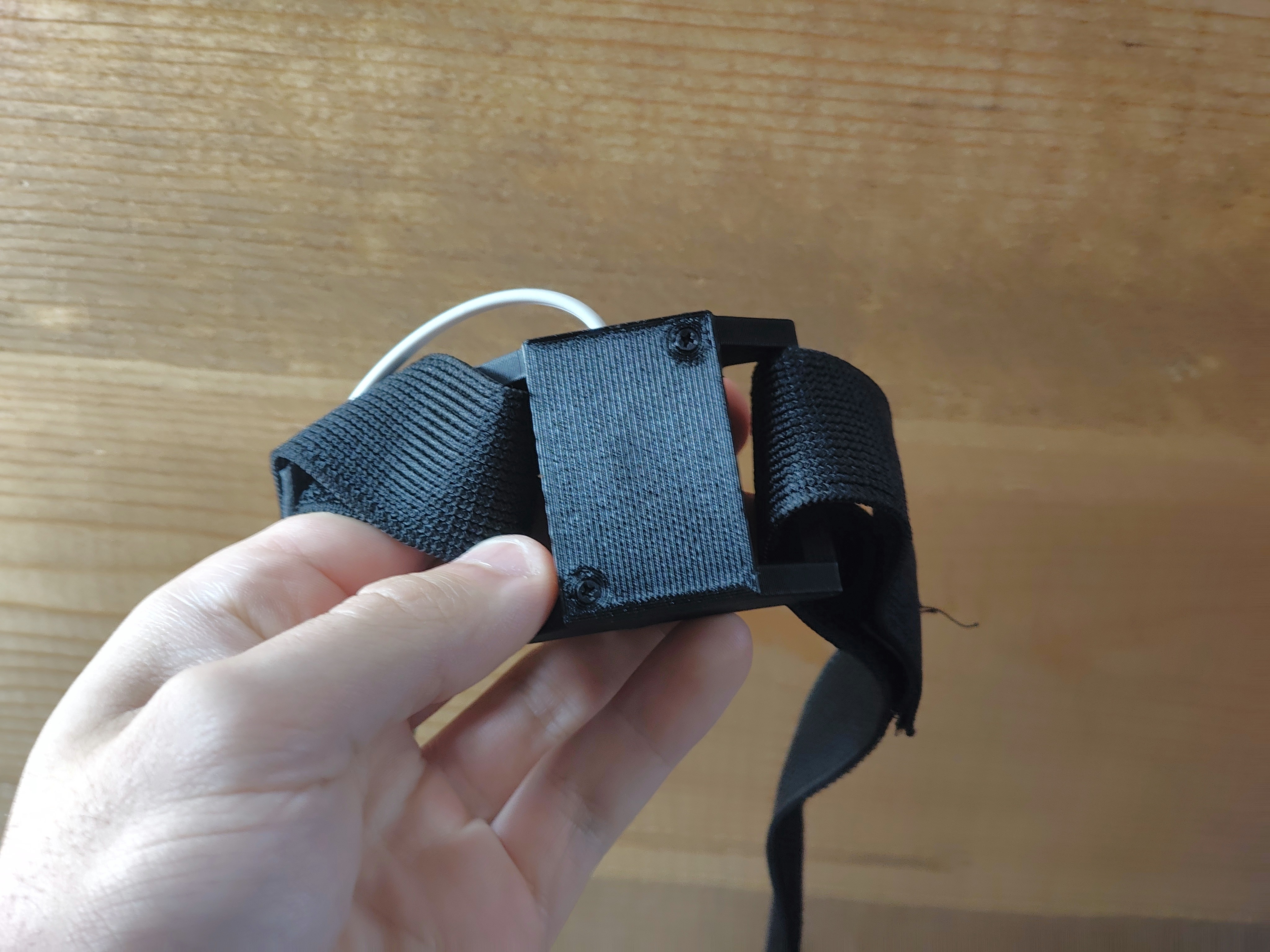

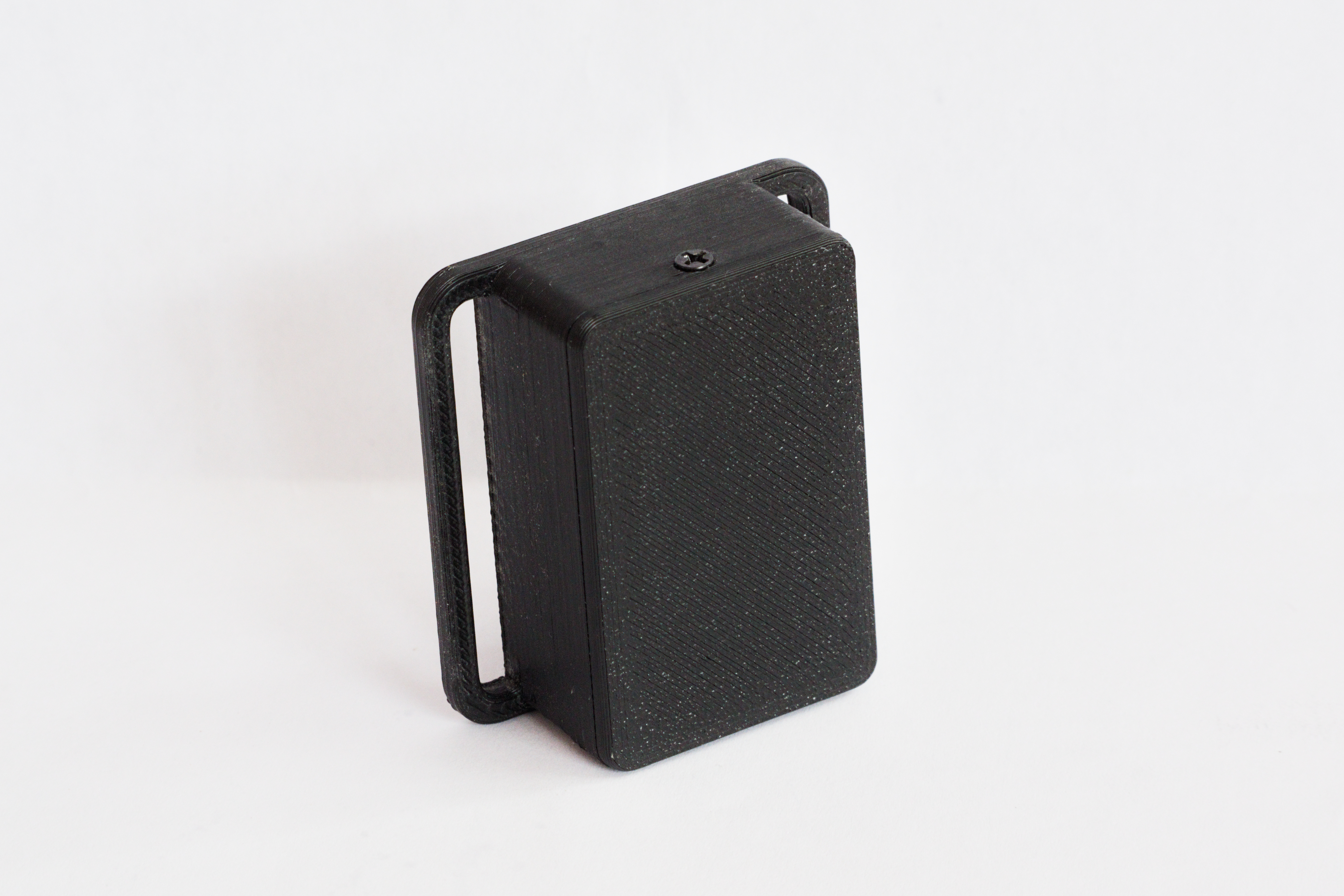

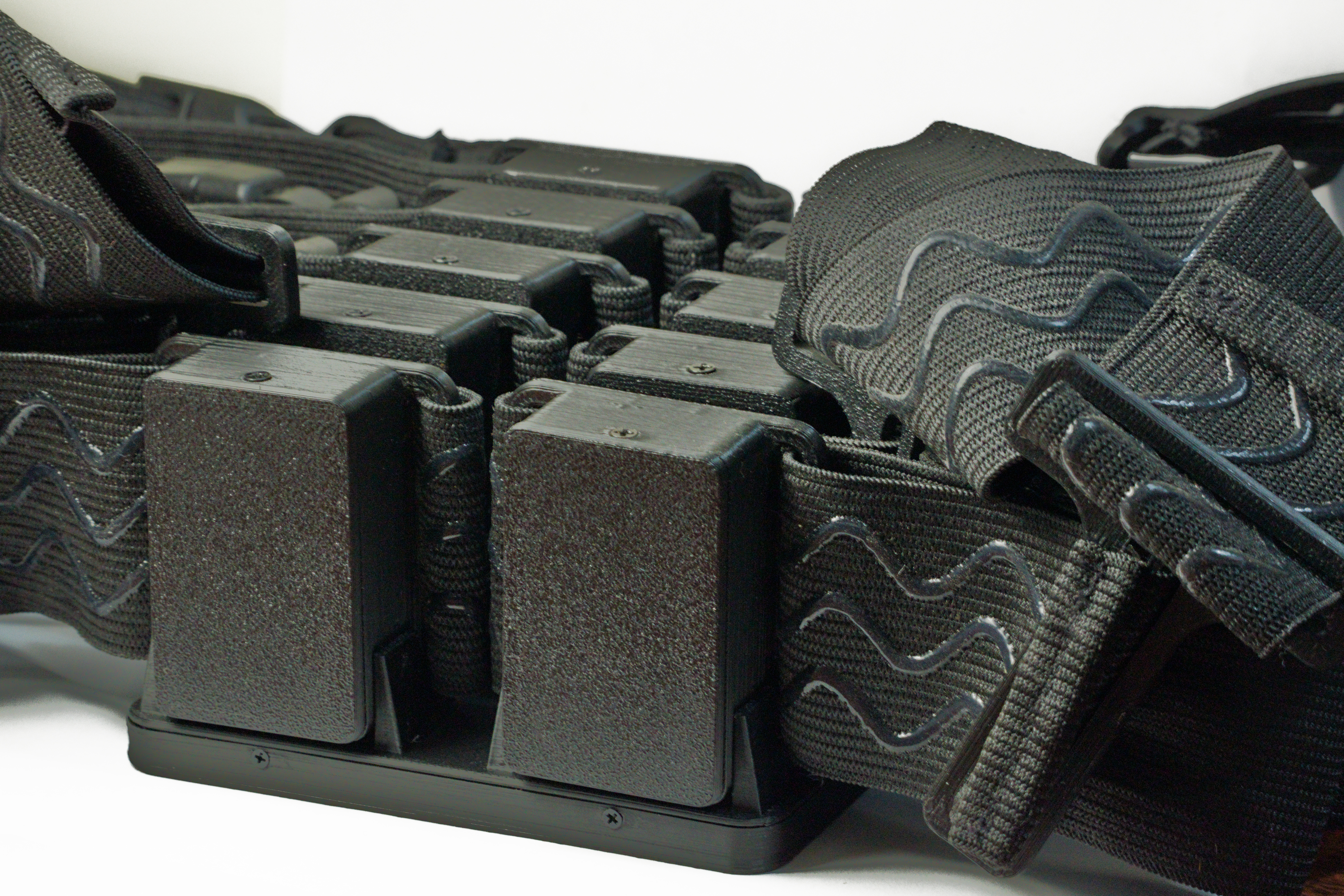

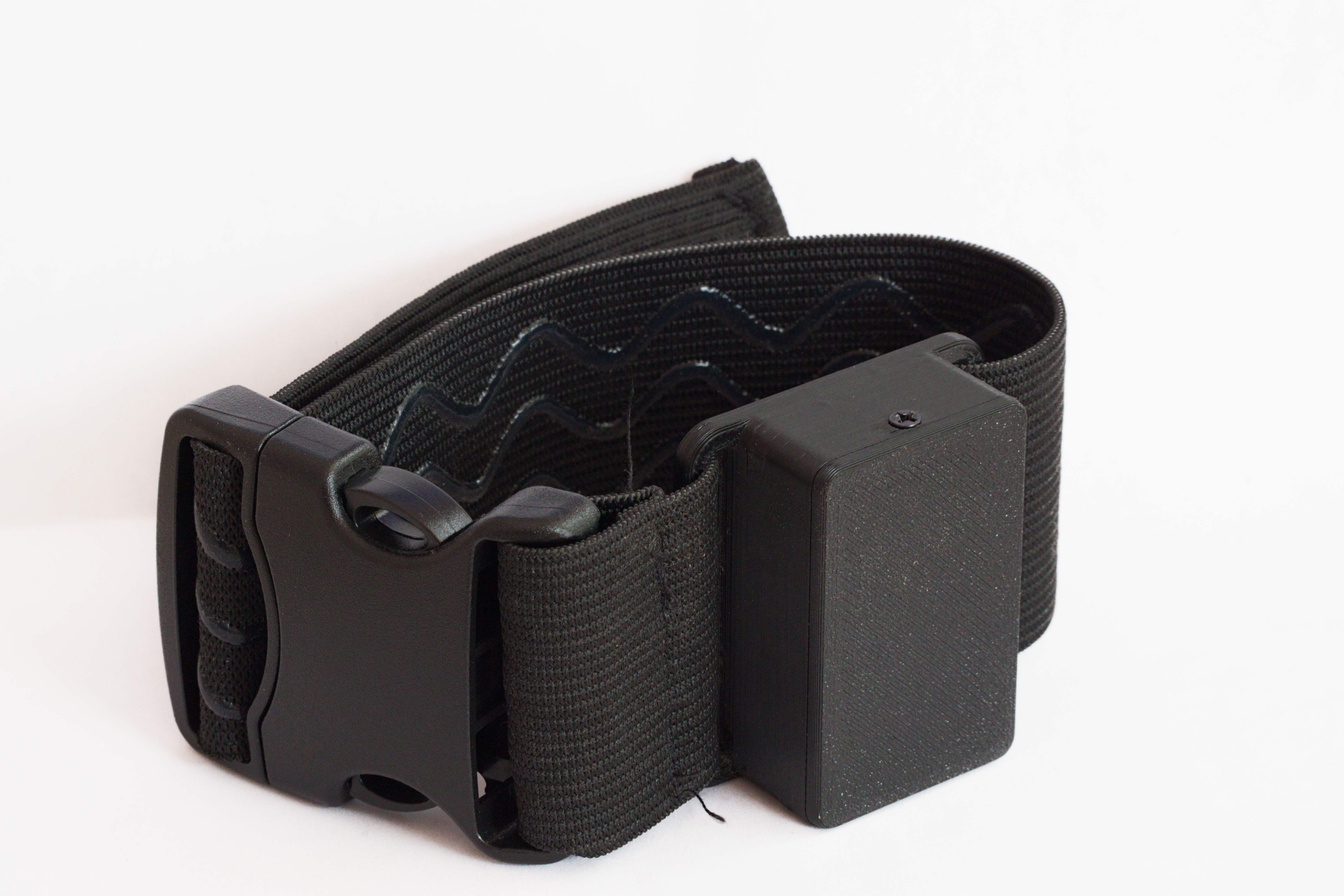

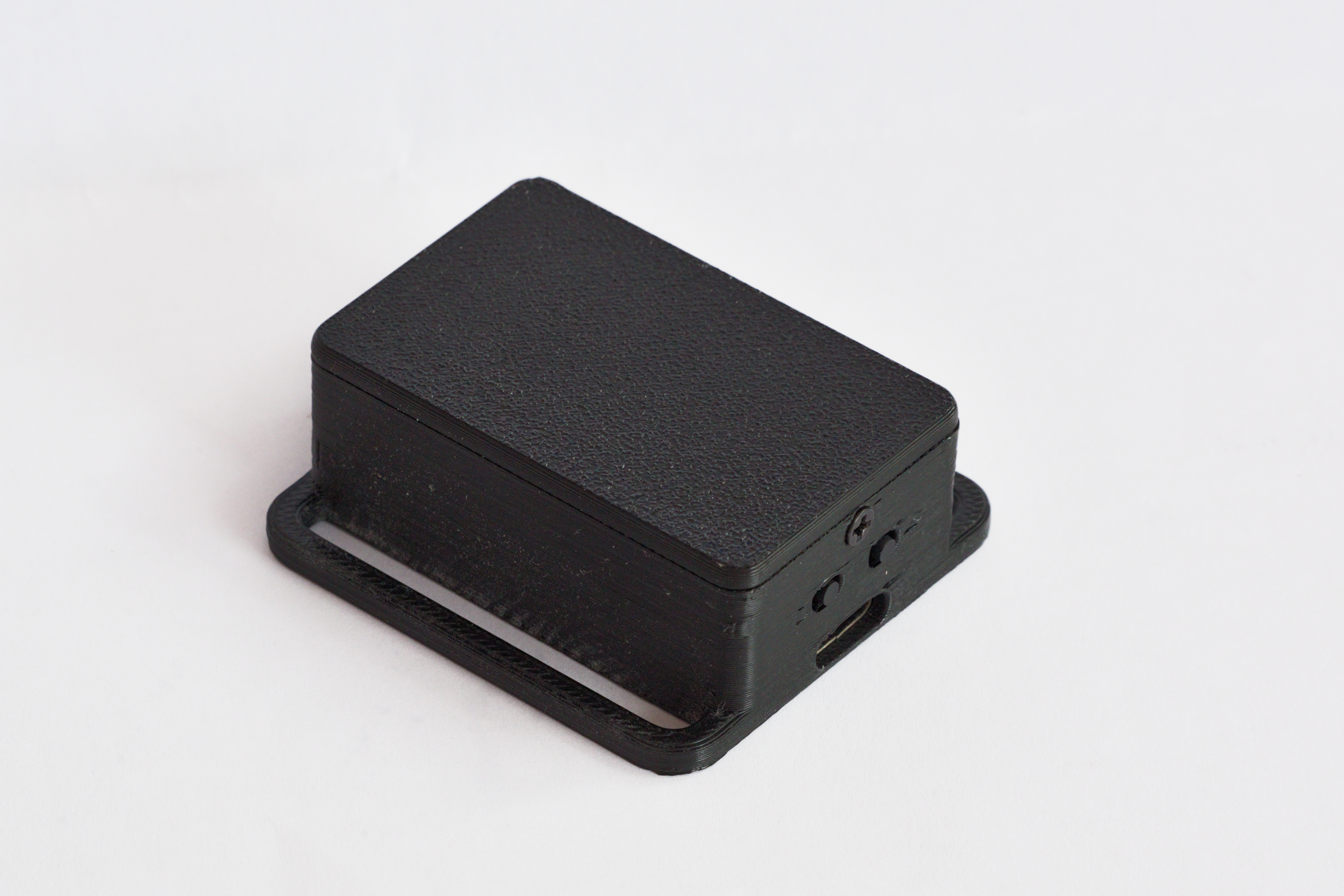

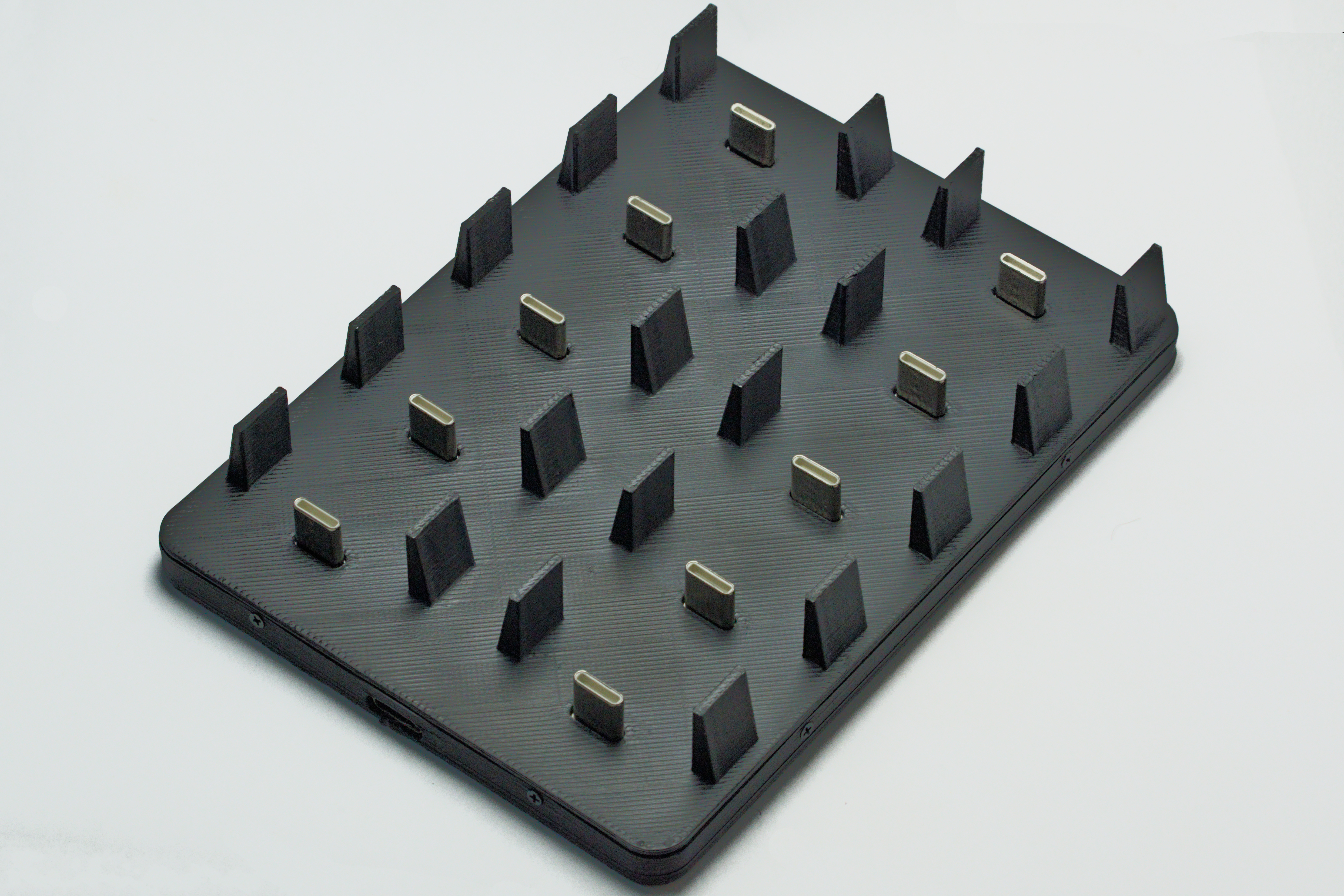

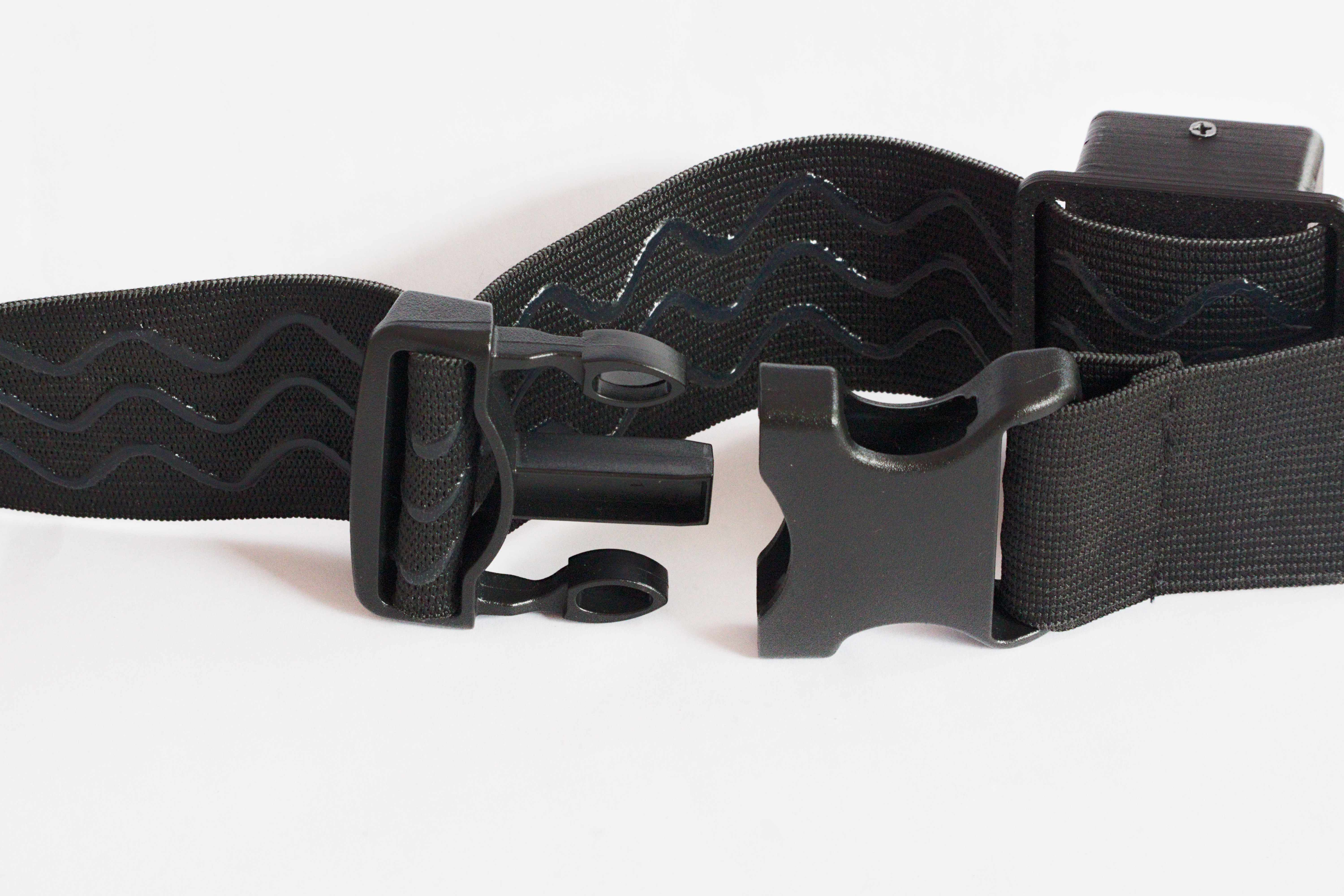

Tracker Photos
All Chest Foot Ankle
Photography
Birds
Bugs
IMGP3765 9f6962442621c69ee8b6c72f6c4c7b7f-Full IMGP3988-DN-cr IMGP3977-DN-cr IMGP3763 fea23ac3c43d47dd6c717b2eafc87a18-Full d7ebec39a27876fcd30b5655da911768-Full 469633358a4ddbe0c22abe18e524dad2-Full c472c9c9c546b27f58b794e0aa1b5bdf-Full 86d2513e2032190cbc6f09d46ed4938b-Full 66feb27f50c7bc1aaa619b4f0f161854-Full 051ff674e848dbfd804289ccfc1ededd-Full 24e6eb5e8572e97a825bd2920f5f1537-Full 20a840d93895b116a00ad40ba548066d-Full 7e336c43a376b9f24deaccf1191fd25f-Full 2f569014558e9d397cb863b0af9e47e1-Full 0e8632ab381bfa83aee5f98b733f603b-Full 1a5e43c856c7d5ad9bdebd41eead54ed-Full
Flowers
e0c023458cf662c7ddabf30a9734ad61-Full IMGP3767 IMGP3778 ef5f19a9231ef763db844dde5e7786e0-Full ed097b861f2297030726767b25345166-Full ed1c57a3cdc7748abbf2d97d2566ea25-Full d9febbb4cc290c166ba0b012405dca93-Full b1573ab9484f4030833a3d093bbc17cf-Full b873ffedf066d37ee430d9b31345f091-Full 57643761ad7c72fa810f2fd1462a245e-Full 83279e6f8f98587beb41085cf768c865-Full 5945eb38fe40957fb11cfa326b1a528a-Full IMGP3885 452efed047af490be0c58b39f9d894e1-Full 444e86c130b106516e8717732268b2f1-Full 13a54f792ac2273621bab8f99d800e29-Full
Plants
31bbaa60c1753344f6a007182b57fac3-Full a83db02ebbc8427a8a4f5145b846a718-Full 7c3dc465e1ca52cfef753fb4de8bf84b-Full 4d7841a9cd4b965548bfbf0e38a2d7a4-Full
Creatures
fa193886bc16a139c429596739a5d285-Full d75fc1f89d1f5470c21905576de4de00-Full c6a184343070e8add894433d88ab6ce7-Full bda4373b972b0e7282157d8727373199-Full ad358b278f86bda7abedd40b0d6e37df-Full 8755d16adbbc6dff70c9a35816903a1b-Full 4fb61e94b38cd07e931a5ff2007f0fb5-Full 3d6d65b95fac12b6b7d75819f1c19174-Full 0c4e21ad01ea96866b2ef31952cc97e6-Full
Other
52438631485-0e7dd1d7b2-o IMGP3934-dn IMGP3927-dn cf8885311c1c3dcde2fbc164ee3f3b84-Full c8908787918594af6ab101ee6a7a4a84-Full c8328716aaa02cc00215eb206171cfab-Full 42715778daec066e792f721d156d2165-Full 883749263e0f9f8f16b0a990533c665a-Full 135fb56a9cd25163d93ec3bb4d742a97-Full 37bd6aaa8bc75b72a7d5f2c22a846dab-Full 8f5346a4af64e793ddb804d06fa876a1-Full 3c58ebe6a35d8f4a0d1a9baac1dbc472-Full
Socials
Q&A
Why did you make this site?
I made this site since I plan on selling my trackers and need to provide people a resource showing them off.
I'm having issues with my trackers. Where can I go to get help with them?
You can contact me for help with trackers, or check out the SlimeVR common issues page for help with common issues.
